Corona Engine

Downloads

Example Source

Forums

Forge TV on Razer Forums

Corona on CoronaLabs Forums

Developer Support Hangouts

2013:

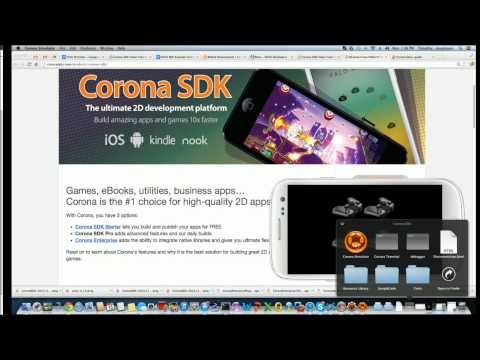

Razer Hangout July 15th (1:00:00)

Guide

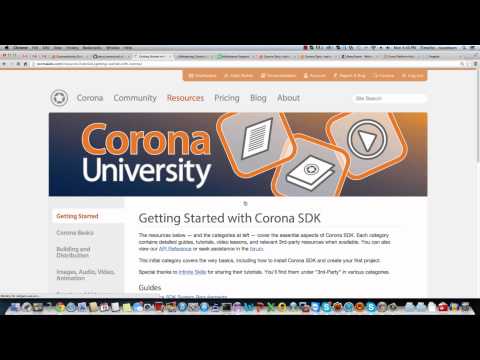

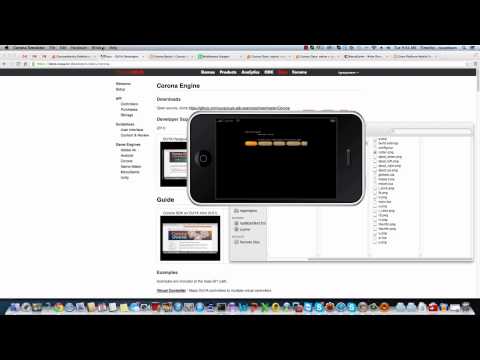

Corona SDK on OUYA Intro (5:01)	Corona Script Editors (6:05)

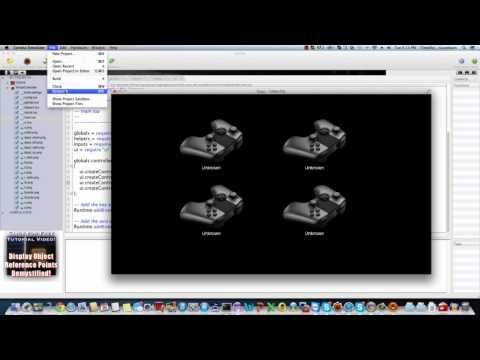

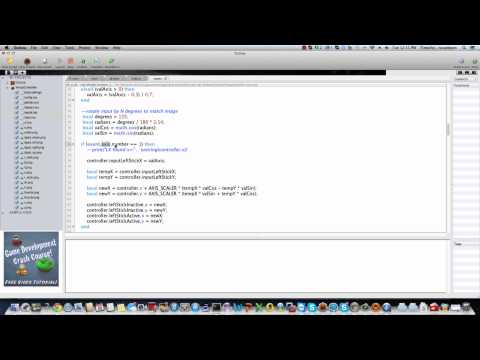

Corona SDK Virtual Controller (19:11)	Corona Simulator Builds (3:05)

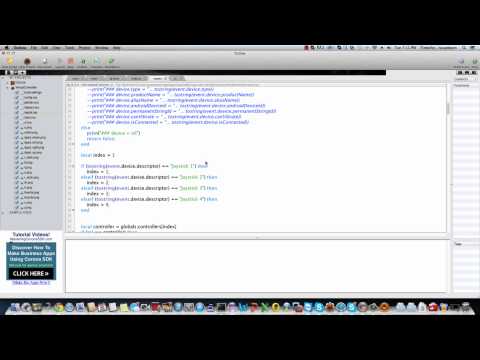

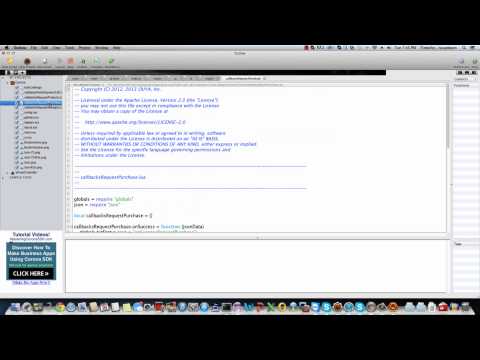

Quick Corona Input Setup (3:00)	Quick Corona IAP Setup (4:29)
Corona SDK Install - Windows (1:30)

Examples

Examples are included at the base GIT path.

Virtual Controller - Maps Cortex controllers to multiple virtual controllers

####Corona Enterprise Examples

InAppPurchases - Adds Java/LUA hooks for in-app-purchases in Corona Enterprise

####Corona Pro Examples

InAppPurchasesPlugin - Uses Cortex plugin for in-app-purchases for Mac and Windows (required Corona PRO)

Resources

Corona SDK - http://coronalabs.com/products/corona-sdk/
Corona SDK Daily Builds - http://developer.coronalabs.com/downloads/daily-builds
Corona Enterpise Daily Builds - http://developer.coronalabs.com/downloads/enterprise-daily-builds
Corona Resources - http://coronalabs.com/resources/
Mastering Corona SDK - http://masteringcoronasdk.com/
Corona Editor - http://coronalabs.com/blog/2013/12/11/corona-editor-is-now-1-0/
Lua Spec - http://www.lua.org/manual/5.3/

Building

Mac

The Corona Enterprise SDK goes into the subfolder of your Mac's Application folder

Corona Enterprise includes sample applications:

Applications/CoronaEnterprise/Samples/

Authorize

Initially when setting up Corona Enterprise, the license needs to be authorized via the command-line.

/Applications/CoronaEnterprise/Corona/mac/bin/CoronaBuilder.app/Contents/MacOS/CoronaBuilder authorize your_email your_password

I had to edit the build script to add paths to the ant includes:

Applications/CoronaEnterprise/Corona/android/lib/Corona/build.xml

<property file="${user.dir}/local.properties" />
<property file="${user.dir}/ant.properties" />
<import file="${user.dir}/custom_rules.xml" optional="true" />

###Recommended Tools

Outlaw IDE - http://outlawgametools.com/outlaw-code-editor-and-project-manager/

#Full Document

Audience

The ouya-sdk-examples are targeted towards Corona Enterprise users intending to publish to the Cortex platform.

Supported Platforms

Building Corona Enterpise examples that use Android java requires the Mac platform. Samples that use the OUYA Plugin for Corona will build on Mac or Windows.

Introduction

Welcome to the Corona Enterprise development club. These examples provide a quick way to add Cortex controllers and in-app-purchase support to your game.

Corona Simulator

The following examples apply to the Corona Simulator version.

Build for Android with Command+Shift+B which will produce an APK that you can install with adb commands.

adb install -r /path/to/Example.apk

Corona scripts are Lua scripts.

build.settings

The Corona Simulator doesn't have direct access to the Android.manifest, where build.settings gives you access to modify settings indirectly.

Add the intent filter so that your game appears in the Cortex Play Category.

settings =
{
   android =
   {
      mainIntentFilter =
      {
         categories = { "tv.ouya.intent.category.GAME" },
      }
   },
}

Set the orientation to landscape left.

settings =
{
	orientation = {
		default = "landscapeLeft",
		supported = { "landscapeLeft", },
	},
}

config.lua

Corona is designed to scale up, not down. So you want to specify 720p which will scale up to 1080p.

application =
{
	content =
	{
		width = 1280,
		height = 720,
		scale = "letterbox",
	},
}

main.lua

The starting point for your Corona game.

Subscribe to OUYA-Everywhere input events.

lua

if nil ~= ouyaSDK and nil ~= ouyaSDK.asyncLuaOuyaInitInput then
	ouyaSDK.asyncLuaOuyaInitInput(inputs.onGenericMotionEvent, inputs.onKeyDown, inputs.onKeyUp);
end

Axis events come in with the onGenericMotionEvent callback. playerNum is the controller number 0 through 3. (Zero-based) Axis is the axis number for the event. Val is the floating input value for the axis.

lua

inputs.onGenericMotionEvent = function (playerNum, axis, val)
end

The supported axis values are below.

OuyaController.AXIS_LS_X
OuyaController.AXIS_LS_Y
OuyaController.AXIS_RS_X
OuyaController.AXIS_RS_Y
OuyaController.AXIS_L2
OuyaController.AXIS_R2

Button events come in with the onKeyDown and onKeyUp events. PlayerNum is the controller number 0 through 3. (Zero-based). Button is the button number for the event.

lua

inputs.onKeyDown = function (playerNum, button)
end

inputs.onKeyUp = function (playerNum, button)
end

The supported button values are below.

OuyaController.BUTTON_O
OuyaController.BUTTON_U
OuyaController.BUTTON_Y
OuyaController.BUTTON_A
OuyaController.BUTTON_L1
OuyaController.BUTTON_R1
OuyaController.BUTTON_L3
OuyaController.BUTTON_R3
OuyaController.BUTTON_DPAD_UP
OuyaController.BUTTON_DPAD_DOWN
OuyaController.BUTTON_DPAD_RIGHT
OuyaController.BUTTON_DPAD_LEFT
OuyaController.BUTTON_MENU

OuyaController.BUTTON_MENU can be used to detect the menu button press.

lua

    if (button == OuyaController.BUTTON_MENU) then
    end

Use OuyaController buttons to determine which button was pressed in the event.

lua

	if (button == OuyaController.BUTTON_DPAD_LEFT) then
    end

Virtual Controller

Open the Corona Simulator at the path - ouya-sdk-examples/Corona/VirtualController/

main.lua

Main creates the virtual controller sprites.

globals.controllers =
{
	ui.createController(1, 150, 500, 2, 2),
	ui.createController(2, 150, 1200, 2, 2),
	ui.createController(3, 850, 500, 2, 2),
	ui.createController(4, 850, 1200, 2, 2)
};

globals.lua

Globals defines the set of global controller objects handles in other scripts.

helpers.lua

These are some helper lua scripts for creating and fading sprites.

inputs.lua

The axis and button events pass through to the controller sprites to highlight button presses and move the virtual axises.

ui.lua

This script handles creation of the virtual controller sprites and loads the texture sprite objects.

Corona Enterprise

The following examples apply to the Corona Enterprise version.

As with Corona Simulator projects the Corona subfolder can be opened and tested in Corona Simulator to validate the Lua script part of the project.

ouya-sdk-examples/Corona/InAppPurchases/Corona/

The android portion of the project cannot be compiled in the Corona Simulator and is compiled in the terminal or command line.

ouya-sdk-examples/Corona/InAppPurchases/android/

AndroidManifest.xml

The standard Android configuration that can be customized for Corona. Here you can customize the CoronaApplication, CoronaActivity, and intent filters.

build_easy.sh

This is a convenience shell script that clears the generated and binary files. The script invokes the build script and installs the build to the connected android device.

install_easy.sh

This is a convenience shell script that installs the build android package.

debug.keystore

Final builds should use a custom keystore. The debug keystore can be used for testing builds.

local.properties

Local properties defines the Android SDK path and the keystore settings for the build.

sdk.dir=~/android/android-sdk-macosx
key.alias=androiddebugkey
key.store=debug.keystore
key.store.password=android
key.alias.password=android

If you update the Android SDK path and generate local.properties be sure to readd the properties above.

android update project --path .

In-App-Purchases

libs/ouya-sdk.jar

The Cortex ODK library used by Corona.

src/.../CoronaApplication.java

Contained within CoronaRuntimeEventHandler defines Lua fuction interfaces that allow Corona Lua scripts to invoke Java methods.

src/.../CoronaOuyaActivity.java

The activity is used to load the signing key resource and initialize the CoronaOuyaPlugin for in-app-purchases.

src/.../AsyncLuaOuyaRequestGamerInfo.java

This provides the Lua interface to Java to fetch the gamer uuid.

src/.../AsyncLuaOuyaRequestProducts.java

This provides the Lua interface to Java to request the product details.

src/.../AsyncLuaOuyaRequestPurchase.java

This provides the Lua interface to Java to request a purchase.

src/.../AsyncLuaOuyaRequestReceipts.java

This provides the Lua interface to Java to request receipts.

src/.../Callbacks*.java

The callback methods extract the arguments from the Lua calling method and returning the results to Lua after the service is invoked. Each callback implements onSuccess, onFailure, and onCancel methods.

CallbacksRequestGamerInfo.java
CallbacksRequestProducts.java
CallbacksRequestPurchase.java
CallbacksRequestPurchase.java
CallbacksRequestReceipts.java

src/.../CoronaOuyaFacade.java

The Corona Ouya Facade is an interface between the callbacks above and the OuyaFacade which directly interacts with the in-app-purchase service. The "Async" methods pass the LuaState to the "Callbacks" and then invoke the "CoronaOuyaPlugin" which invokes the "OuyaFacade". The "CoronaOuyaFacade" services complete and invoke the "Callbacks" and the results are returned to Lua.

src/.../CoronaOuyaPlugin.java

The Corona Ouya Plugin wraps invoking methods on the OuyaFacade. The CoronaOuyaPlugin provides the Java listeners for the OuyaFacade callbacks.

src/.../IOuyaActivity.java

This is an interface that holds static references and accessors for easy access between the SDK classes.

Corona/callbacks*.lua

When the CoronaOuyaFacade listener hits the onSuccess, onFailure, or onCancel callback the corresponding Lua callback is called.

Corona/callbacksRequestGamerInfo.lua
Corona/callbacksRequestProducts.lua
Corona/callbacksRequestPurchase.lua
Corona/callbacksRequestReceipts.lua

Corona/globals.lua

Store all the Lua script globals in one place.

Corona/helpers.lua

These are some helper lua scripts for creating buttons and fading sprites.

Corona/inputs.lua

This lua script provides the input handlers and navigation through the main menu. When the main buttons are clicked this script invokes the Java interfaces and supplies the Lua callbacks for the onSuccess, onFailure, and onCancel callbacks.

Corona/main.lua

Be sure to set your developer id from the developer portal.

local json = require "json"
if nil ~= ouyaSDK and nil ~= ouyaSDK.initOuyaPlugin then
	local data = {
	[1] = {
	    ["key"] = "tv.ouya.developer_id",
	    ["value"] = "310a8f51-4d6e-4ae5-bda0-b93878e5f5d0"
	}};
	local jsonData = json.encode(data);
	ouyaSDK.initOuyaPlugin(callbacksInitOuyaPlugin.onSuccess, callbacksInitOuyaPlugin.onFailure, jsonData);
end

The main script sets up the basic button and text layout of the application. The key input listener is also registered here.

Corona/ui.lua

The UI script handles displaying the products and receipts using the response data from the in-app-purchase service.

Xiaomi Initialization

Back to general info

initOuyaPlugin supports additional strings to make the game compatible with OUYA Everywhere devices.

tv.ouya.developer_id - The developer UUID can be found in the developer portal after logging in.
com.xiaomi.app_id - The Xiaomi App Id is provided by the content team, email officehours@ouya.tv to obtain your key.
com.xiaomi.app_key - The Xiaomi App Key is provided by the content team, email officehours@ouya.tv to obtain your key.
tv.ouya.product_id_list - The product id list is a comma separated list of product ids that can be purchased in the game.

local json = require "json"
if nil ~= ouyaSDK and nil ~= ouyaSDK.initOuyaPlugin then
	local data = {

	[1] = {
	    ["key"] = "tv.ouya.developer_id",
	    ["value"] = "00000000-0000-0000-0000-000000000000"
	},

	[2] = {
	    ["key"] = "com.xiaomi.app_id",
	    ["value"] = "0000000000000"
	},

	[3] = {
	    ["key"] = "com.xiaomi.app_key",
	    ["value"] = "000000000000000000"
	},

	[4] = {
	    ["key"] = "tv.ouya.product_id_list",
	    ["value"] = "long_sword,sharp_axe,cool_level,awesome_sauce"
	}};

	local jsonData = json.encode(data);
	ouyaSDK.initOuyaPlugin(callbacksInitOuyaPlugin.onSuccess, callbacksInitOuyaPlugin.onFailure, jsonData);
end

Disable Xiaomi Screensaver

Back to general info

The screensaver should be disabled while your game is running. By using the OUYA-Corona plugin, the screensaver will automatically be disabled.

Create a Xiaomi-specific icon

Back to general info

The Corona documentation has info about how to include Cortex and Xiaomi store icons.

The Icon-ouya.png should be 732x412 and placed into your Corona project fodler.
The Icon-ouya-xiaomi.png should be 284x160 and placed into your Corona project fodler.

API

In order to use the Cortex plugin be sure to include the plugin_ouya.lua script in your Corona project folder.

Is Available

When a Corona game starts be sure to check that the Cortex plugin is available before loading the game. Games that do not check IsAvailable may flicker or appear to load twice.

local ouya = require("plugin.ouya") -- load the ouya plugin
plugin_ouya = require "plugin_ouya"
if nil ~= plugin_ouya and nil ~= plugin_ouya.luaOuyaIsAvailable then
	print ("*** Check if plugin is available **** Is Available??? == " .. tostring(plugin_ouya.luaOuyaIsAvailable()))
	if plugin_ouya.luaOuyaIsAvailable() then
		-- continue loading game
	else
		-- OUYA Plugin has not loaded
		return;
	end
else
	-- OUYA Plugin has not loaded
	return;
end

Files

corona.md

Latest commit

History

corona.md

File metadata and controls

Corona Engine

Downloads

Forums

Developer Support Hangouts

Guide

Examples

Resources

Building

Mac

Authorize

Audience

Supported Platforms

Introduction

Corona Simulator

build.settings

config.lua

main.lua

Virtual Controller

main.lua

globals.lua

helpers.lua

inputs.lua

ui.lua

Corona Enterprise

AndroidManifest.xml

build_easy.sh

install_easy.sh

debug.keystore

local.properties

In-App-Purchases

libs/ouya-sdk.jar

src/.../CoronaApplication.java

src/.../CoronaOuyaActivity.java

src/.../AsyncLuaOuyaRequestGamerInfo.java

src/.../AsyncLuaOuyaRequestProducts.java

src/.../AsyncLuaOuyaRequestPurchase.java

src/.../AsyncLuaOuyaRequestReceipts.java

src/.../Callbacks*.java

src/.../CoronaOuyaFacade.java

src/.../CoronaOuyaPlugin.java

src/.../IOuyaActivity.java

Corona/callbacks*.lua

Corona/globals.lua

Corona/helpers.lua

Corona/inputs.lua

Corona/main.lua

Corona/ui.lua

Xiaomi Initialization

Disable Xiaomi Screensaver

Create a Xiaomi-specific icon

API

Is Available
