Post Processing Shaders
A post processing shader is a type of shader applied to the game's render output after the scene has been rendered, but before the final display on the screen. This allows you to modify the final image that is displayed in many ways. You can read up on Minecraft shaders here.
Lodestone introduces the PostProcessor class, designed to facilitate the integration of post-processing shaders into Minecraft, allowing you to get started with post processing shaders within minutes.
In this guide I will walk you through creating a shader that will tint your screen pink.
To begin, create a new class that extends Lodestone's PostProcessor class, see example below.
package dev.cryptic.aspect.client.shader.lodestone.post;
import com.mojang.blaze3d.vertex.PoseStack;
import net.minecraft.resources.ResourceLocation;
import team.lodestar.lodestone.systems.postprocess.PostProcessor;
public class TintPostProcessor extends PostProcessor {
@Override
public ResourceLocation getPostChainLocation() {
return null;
}
@Override
public void beforeProcess(PoseStack poseStack) {
}
@Override
public void afterProcess() {
}
}There are a few things you must do to setup this class, mainly you should modify the getPostChainLocation() method to return a new ResourceLocation which contains your mod's ID and the name of the shader. Next you should create a static instance of your post processor making it a singleton class.
public static final TintPostProcessor INSTANCE = new TintPostProcessor();
@Override
public ResourceLocation getPostChainLocation() {
return new ResourceLocation(Aspect.MOD_ID, "tint_post");
}Now you must register your new post processor using PostProcessorHandler, this will happen in the FMLClientSetupEvent, see example below.
@Mod.EventBusSubscriber(modid = Aspect.MOD_ID, bus = Mod.EventBusSubscriber.Bus.MOD, value = Dist.CLIENT)
public class ClientModEvents
{
@SubscribeEvent
public static void onClientSetup(FMLClientSetupEvent event) {
PostProcessHandler.addInstance(TintPostProcessor.INSTANCE);
}
}Now your TintPostProcessor is registered! However nothing will happen just yet because we have not created the post file and program.
Remember how we had to define a ResourceLocation earlier in the method getPostChainLocation()?
In my example I used
new ResourceLocation(Aspect.MOD_ID, "tint_post")which directly correlates with the file location assets/aspect/shaders/post/tint_post.json This is your "Post" JSON file and it will hold the instructions for your shader.
Below is a basic Post JSON which takes in the game's render output minecraft:main, hands it off to our program aspect:tint, and then passes it to Minecraft's blit program where it then replaces minecraft:main.
{
"targets": [
"final"
],
"passes": [
{
"name": "aspect:tint",
"intarget": "minecraft:main",
"outtarget": "final"
},
{
"name": "blit",
"intarget": "final",
"outtarget": "minecraft:main"
}
]
}Now you are done with your "Post" JSON file!
When writing our "Post" JSON file it referenced something called aspect:tint, this is whats called a program. Essentially it is a function that we pass minecraft:main into before it returns the out target of final.
Now this is where the real magic happens.
In assets/aspect/shaders/program/ create a new JSON file called tint.json
There are many values in this program file but the main ones we want to pay attention to right now are the vertex and fragment values. These specify which vertex and fragment shaders the program will use. For now keep the vertex shader as blit, we dont need to change that.
{
"blend": {
"func": "add",
"srcrgb": "srcalpha",
"dstrgb": "1-srcalpha"
},
"vertex": "blit",
"fragment": "aspect:tint",
"attributes": [ "Position" ],
"samplers": [
{ "name": "DiffuseSampler" }
],
"uniforms": [
{ "name": "ProjMat", "type": "matrix4x4", "count": 16, "values": [ 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0 ] },
{ "name": "InSize", "type": "float", "count": 2, "values": [ 1.0, 1.0 ] }
{ "name": "OutSize", "type": "float", "count": 2, "values": [ 1.0, 1.0 ] }
]
}Now that our program has been created we can begin creating our fragment shader (fsh)!
In the same folder as the program tint.json, create the fragment shader file tint.fsh.
#version 150
// The game's render output
uniform sampler2D DiffuseSampler;
// The texture coordinate represented as a 2D vector (x,y)
in vec2 texCoord;
// The output color of each pixel represented as a 4D vector (r,g,b,a)
out vec4 fragColor;
void main() {
// Extract the original color of the pixel from the DiffuseSampler
vec4 original = texture(DiffuseSampler, texCoord);
// Pink!
vec3 tintColor = vec3(1.0,0.0,1.0)
// Multiply each rgba value by the tint color.
vec4 result = original * vec4(tintColor, 1.0);
// Set the fragColor output as the result
fragColor = result;
}Now when you launch the game everything should be pink!
If you want to be able to turn your shader on and off you can use
TintPostProcessor.INSTANCE.setActive(boolean);To toggle the shader on and off you can use
TintPostProcessor.INSTANCE.setActive(!TintPostProcessor.INSTANCE.isActive());If you dont want the shader to be active by default you can add a static block to your PostProcessor
public class TintPostProcessor extends PostProcessor {
public static final TintPostProcessor INSTANCE = new TintPostProcessor();
// Static block added to turn the shader off by default
static {
INSTANCE.setActive(false);
}
@Override
public ResourceLocation getPostChainLocation() {
return new ResourceLocation(Aspect.MODID, "tint");
}
@Override
public void beforeProcess(PoseStack poseStack) {
}
@Override
public void afterProcess() {
}
}Lodestone introduces the MultiInstancePostProcessor class, which extends the functionality of the PostProcessor allowing developers to easily create multiple instances of a post-processing effect with just one shader applied. This is done by creating instances of a DynamicShaderFxInstance which is then added to your MultiInstancePostProcessor. Then the processor will compile every uniform expressed as floats into a single DataBuffer that is then passed to the shader.
In this guide, we'll walk through creating a multi-instance post-processing shader that applies a glowing effect to specific areas in the world.
For this example you will need to utilize the Depth Buffer, you can follow this tutorial for more information.
Start by creating a class that extends DynamicShaderFxInstance. This class will represent a single instance of your shader effect and will contain the necessary uniforms: center, color
package dev.cryptic.aspect.client.shader.lodestone.post.multi.glow;
import org.joml.Vector3f;
import team.lodestar.lodestone.systems.postprocess.DynamicShaderFxInstance;
import java.util.function.BiConsumer;
public class LightingFx extends DynamicShaderFxInstance {
public Vector3f center;
public Vector3f color;
public LightingFx(Vector3f center, Vector3f color) {
this.center = center;
this.color = color;
}
@Override
public void writeDataToBuffer(BiConsumer<Integer, Float> writer) {
writer.accept(0, center.x());
writer.accept(1, center.y());
writer.accept(2, center.z());
writer.accept(3, color.x());
writer.accept(4, color.y());
writer.accept(5, color.z());
}
}Next, create a class that extends MultiInstancePostProcessor. This class will manage all instances of your shader effect.
package dev.cryptic.aspect.client.shader.lodestone.post.multi.glow;
import com.mojang.blaze3d.vertex.PoseStack;
import dev.cryptic.aspect.Aspect;
import team.lodestar.lodestone.systems.postprocess.MultiInstancePostProcessor;
import net.minecraft.client.renderer.EffectInstance;
import net.minecraft.resources.ResourceLocation;
public class GlowPostProcessor extends MultiInstancePostProcessor<LightingFx> {
public static final GlowPostProcessor INSTANCE = new GlowPostProcessor();
private EffectInstance effectGlow;
@Override
public ResourceLocation getPostChainLocation() {
return new ResourceLocation(Aspect.MOD_ID, "glow");
}
// Max amount of FxInstances that can be added to the post processor at once
@Override
protected int getMaxInstances() {
return 16;
}
// We passed in a total of 6 floats/uniforms to the shader inside our LightingFx class so this should return 6, will crash if it doesn't match
@Override
protected int getDataSizePerInstance() {
return 6;
}
@Override
public void init() {
super.init();
if (postChain != null) {
effectGlow = effects[0];
}
}
@Override
public void beforeProcess(PoseStack viewModelStack) {
super.beforeProcess(viewModelStack);
setDataBufferUniform(effectGlow, "DataBuffer", "InstanceCount");
}
}@Mod.EventBusSubscriber(modid = Aspect.MOD_ID, bus = Mod.EventBusSubscriber.Bus.MOD, value = Dist.CLIENT)
public class ClientModEvents {
@SubscribeEvent
public static void onClientSetup(FMLClientSetupEvent event) {
PostProcessHandler.addInstance(GlowPostProcessor.INSTANCE);
}
}Your glow.json file should define 2 new uniforms, a DataBuffer and InstanceCount both as "type": "int"
{
"blend": {
"func": "add",
"srcrgb": "srcalpha",
"dstrgb": "1-srcalpha"
},
"vertex": "aspect:glow",
"fragment": "aspect:glow",
"attributes": [ "Position" ],
"samplers": [
{ "name": "DiffuseSampler" },
{ "name": "MainDepthSampler" }
],
"uniforms": [
{ "name": "DataBuffer", "type": "int", "count": 1, "values": [ 0 ] },
{ "name": "InstanceCount", "type": "int", "count": 1, "values": [ 0 ] },
{ "name": "ProjMat", "type": "matrix4x4", "count": 16, "values": [ 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0 ] },
{ "name": "invProjMat", "type": "matrix4x4", "count": 16, "values": [ 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0 ] },
{ "name": "invViewMat", "type": "matrix4x4", "count": 16, "values": [ 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0, 0.0, 0.0, 0.0, 0.0, 1.0 ] },
{ "name": "cameraPos", "type": "float", "count": 3, "values": [ 0.0, 0.0, 0.0 ] },
{ "name": "InSize", "type": "float", "count": 2, "values": [ 1.0, 1.0 ] },
{ "name": "OutSize", "type": "float", "count": 2, "values": [ 1.0, 1.0 ] }
]
}Now your glow.fsh and/or glow.vsh files should be able to access the DataBuffer and InstanceCount uniforms.
Its important to note that the data buffer stores the data for all instances of the shader, so you will need to retrieve it using texelFetch.

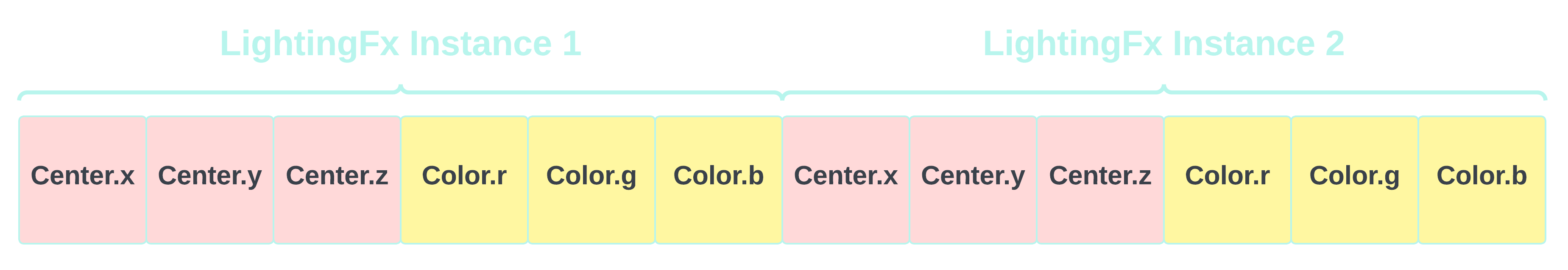

DataBuffer is structured with two instances of our shader effect.
The first 6 values are the data for the first instance, and the next 6 values are the data for the second instance.
In each instance the first 3 values are the center of the effect, and the next 3 values are the color of the effect.
Knowing this we can define a for loop in our fragment shader to loop through all instances of the effect.
for (int instance = 0; instance < InstanceCount; instance++) {
int index = instance * 6; // Each instance has 6 values
// 0-2: center, 3-5: color
vec3 center = fetch3(DataBuffer, index);
vec3 color = fetch3(DataBuffer, index + 3);
// Per instance logic here
}Now to complete the shader...
#version 150
#moj_import <lodestone:common_math.glsl>
// Samplers
uniform sampler2D DiffuseSampler;
uniform sampler2D MainDepthSampler;
// Multi-Instance uniforms
uniform samplerBuffer DataBuffer;
uniform int InstanceCount;
// Matrices needed for world position calculation
uniform mat4 invProjMat;
uniform mat4 invViewMat;
in vec2 texCoord;
out vec4 fragColor;
void main() {
vec4 diffuseColor = texture(DiffuseSampler, texCoord);
vec3 worldPos = getWorldPos(MainDepthSampler, texCoord, invProjMat, invViewMat, cameraPos);
// Its important to set the fragColor to the diffuseColor before applying the effect!
fragColor = diffuseColor;
float radius = 10.0; // Change this value to modify the falloff of the light, or make it a uniform
for (int instance = 0; instance < InstanceCount; instance++) {
int index = instance * 6;// Each instance has 6 values
// 0-2: center, 3-5: color
vec3 center = fetch3(DataBuffer, index);
vec3 color = fetch3(DataBuffer, index + 3);
float distance = length(worldPos - center);
if (distance <= radius) {
float falloff = 1.0 - clamp(distance / radius, 0.0, 1.0);
fragColor.rgb *= (color * falloff + 1.0);
}
}
}Its important that you import Lodestone's common functions in your shader file or else fetch3 and getWorldPos will not work.
#moj_import <lodestone:common_math.glsl>Spawn a few instances of your shader effect in the world and watch them glow!
Vector3f center = new Vector3f(0, 0, 0);
Vector3f color = new Vector3f(1, 0, 1);
GlowPostProcessor.INSTANCE.addInstance(new LightingFx(center, color));A Depth Buffer is a type of image that stores the depth of each pixel in the scene.
This is useful for post processing shaders as it allows you to create effects such as depth of field, fog, and more.
Lodestone takes care of copying the Depth Buffer so you can utilize it inside of your post processing shaders. To allow your shader program to access the depth buffer you must add "depthMain" to the targets in your "Post" JSON file.
You will also need to add an auxtarget pointed at depthMain:depth in your "Post" JSON file.
{
"targets": [
"final",
"depthMain"
],
"passes": [
{
"name": "aspect:multi/glow",
"intarget": "minecraft:main",
"outtarget": "final",
"auxtargets": [
{
"name": "MainDepthSampler",
"id": "depthMain:depth"
}
],
"uniforms": [
]
},
{
"name": "blit",
"intarget": "final",
"outtarget": "minecraft:main"
}
]
}Now inside of your Program JSON file, add a new Sampler with the same name as the Depth Sampler specified previously, in this case that would be "MainDepthSampler".
{
"blend": {
"func": "add",
"srcrgb": "srcalpha",
"dstrgb": "1-srcalpha"
},
"vertex": "aspect:glow",
"fragment": "aspect:glow",
"attributes": [ "Position" ],
"samplers": [
{ "name": "DiffuseSampler" },
{ "name": "MainDepthSampler" }
],
"uniforms": [
{ "name": "InSize", "type": "float", "count": 2, "values": [ 1.0, 1.0 ] },
{ "name": "OutSize", "type": "float", "count": 2, "values": [ 1.0, 1.0 ] }
]
}Inside of either your vertex and/or fragment shader you now can call on MainDepthSampler as a sampler2D.
uniform sampler2D MainDepthSampler;Now you can use the depth buffer in your shader to create effects such as depth of field, fog, and more!
