Puffins

"Always be yourself. Unless you can be a puffin, then always be a puffin."

We at puffins are dedicated to provide beautiful, uniting and sustainable products to individuals, love birds and families. With our mehtod to only produce whats demanded by our customers and delivering longlasting, high quality products we want to counter the biggest problems of the western society. Our products are locally produced in Europe and we only use materials where we know the origin, to guarantee 100% ethical and sustainable products.

This site is the final Milestone Projects that made up the Full Stack Web Development Course at Code Institute. The core requirements focus on bulding a fullstack site with the use of Django, Python, JavaScript, HTML, CSS and a relational database. The final result is hosted on Heroku, while storing static and media files on an S3 Cloudstorage from AWS. The store is connected to Stripe.

To test the site incl. the checkout process please use the test credit card number provided in the Stripe Documentation:

Number: 4242 4242 4242 4242
Exp. Date: Anything (e.g. 02/24)
CVC: Anything (e.g. 007)

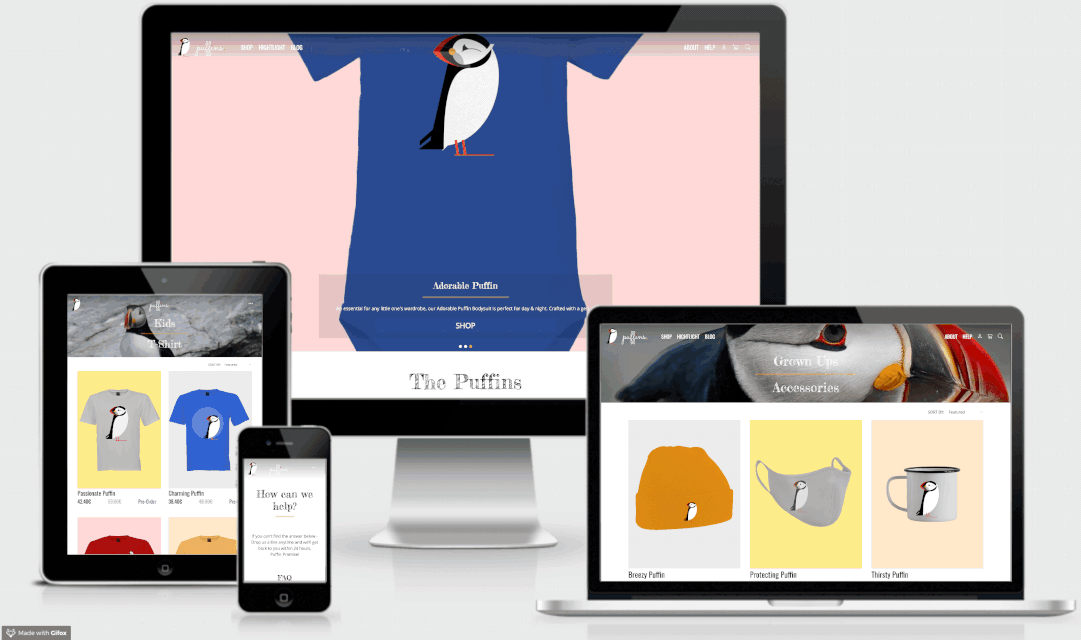

Visit the deployed site: puffins

Table of Content

Puffins
Table of Content
UXD Considerations
Information Architecture
Features
Technologies Applied
Testing
Deployment
References, Credits & Acknowledgment
Fair use disclaimer

UXD Considerations

Purpose and Aim of the Project

The aim of this project is to create an ecommerce shop for sustainable clothing especially targeted towards young couples and families. The goal is to create this shop as an interactive fullstack website that allows customers to browse products, make purchases by credit card and if registered manage a wishlist or see their orderhistory. These goals should be supported by providing a clean and easy to use website that allows seamless navigation and has a low bounce rate.

Design process

Before laying out the project and creating an initial design market research was done. During this research phase the following questions were also acknowledged:

How do other stores look?
What are typical design patterns used across stores?
Which site are appealing to me?
Which kind of stores fit to my business idea?

The final layout was influenced by the following sites:

Target group

The shop is targeted to women and men alike. The typical age of a shopper is estimated to be between 25 and 40 years. Especially couples and small families are targeted with the products. The families usually have 1-2 children in the age of 6 month up to 12 years. All customers have mindset respecting the environment and favoring sustainable products. The income of the target group is an average mid to high household income. Furthermore the target group has a passion for living outdoors and owning sustainable high quality products to use in day to day life.

Epics & User Stories

Before the start of the Project the Epics and User Stories were defined and written out to have complete set of necessary features to get the site going. In total 6 Epics were defined and user stories were broken down into 3 user groups:

regular site visitors
registered users
the store manager/owner.

EPIC: Browse Site

As a site visitor, i want to...

... access the website with any device (smartphone, tablet, desktop), so that i am able to visit the shop anytime and anywhere.
... have easy navigation, to quickly solve the reason for my visit.
... have information about the brand, to get to know the company and understand their mission and story.
... be able to contact the company, so that i quickly can get in touch if i have a question or issue.

Epic: Browse Products

As a site visitor, i want to...

... browse products by category and productline, so that i quickly find what i am looking for.
... sort products, to adjust the order according to my needs.
... be able to search for specific products, to quickly get what i need.
... to access product details, to get more information on an item.
... be able to choose a size, to order the necessary items according to my needs.

Epic: Manage Cart & Make Purchase

As a site visitor, i want to...

... see all my items in a cart, so that i have an overview of my potential purchase.
... be able to reduce / increase quantity, so that i can order my prefered amount.
... be able to remove an item from my cart, so that i can manage my cart efficiently.
... be able to checkout from the cart view, so that i can quickly finish my purchase.
... be able to pay a order by credit card, so that i don't have to deal with an invoice and money transfer.
... receive an order confirmation, so that i know my order was received.

As a registered user, i want to...

... have my details prefilled from my profile, so that i quickly can finish my purchase

Epic: Registration & Useraccount

As a site visitor, i want to...

... be able to sign up to the store, so that i can track orders and have my data prefilled in the order form.

As a registered user, i want to...

... be able to login, so that i can access my useraccount.
... be able to see my order history, so that i know what i've purchased in the past.
... manage my personal details, so that i can quickly update my data if something changes.

Epic: Manage Wishlist

As a registered user, i want to...

... add/remove items to my wishlist, so that can save items for later purchase to my useraccount.
... have an overview of my wishlist, to get an overview of my already added products.

Epic: Store Management

As a store owner, i want to...

... be able to manage the products, categories, productlines and productvariants, so that i have an overview of my inventory.
... manage blog entries, to add new/edit posts on the blog to provide customers some additional value.
... manage FAQs, so that i can quickly update often asked questions

Layout, Styling & Wireframes

The wireframes were created in Figma. Figma is a cloud based desing tool which allows you to rapidly create prototypes, wireframes and layouts Figma

The whole figma project can be accessed here: Puffins - Wireframes

Logo

The puffins logo was created by polardots. It shows a vector style puffin stand upright and is signaling joy to the world!

The puffins text logo was created by me with Figma.

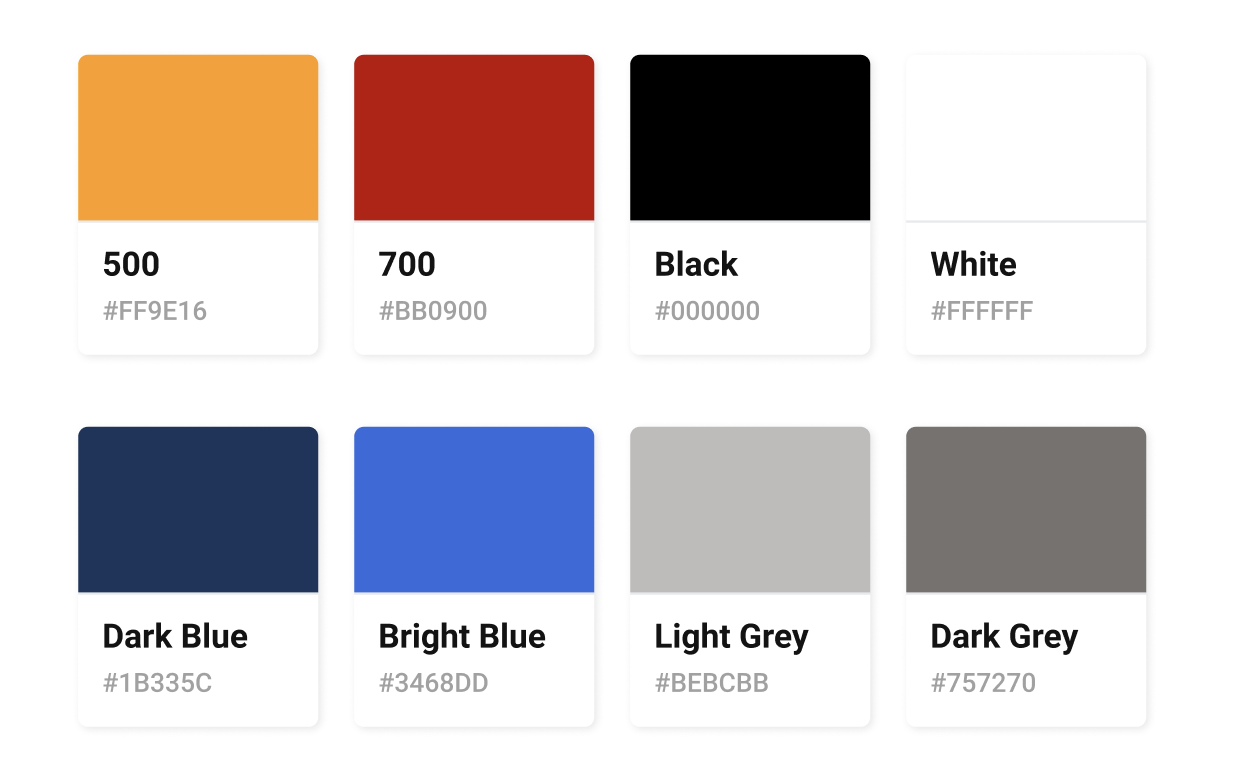

Color Scheme

The color scheme was chosen with the goal to represent a lightweight modern website. The colors are taken from the base colors of the puffin bird.

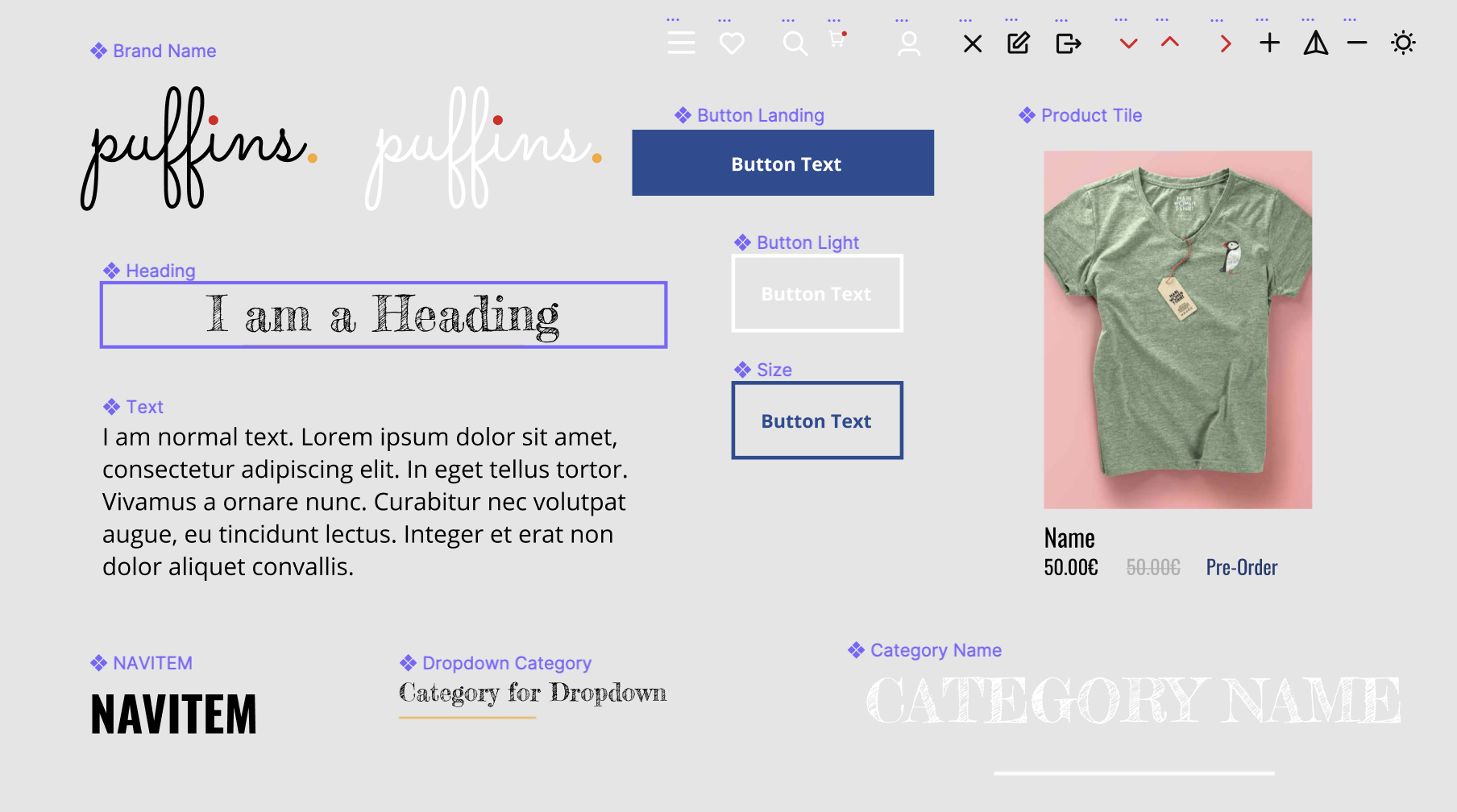

Components

Components were created in Figma:

Wireframes

The whole figma project can be accessed here: Puffins - Wireframes

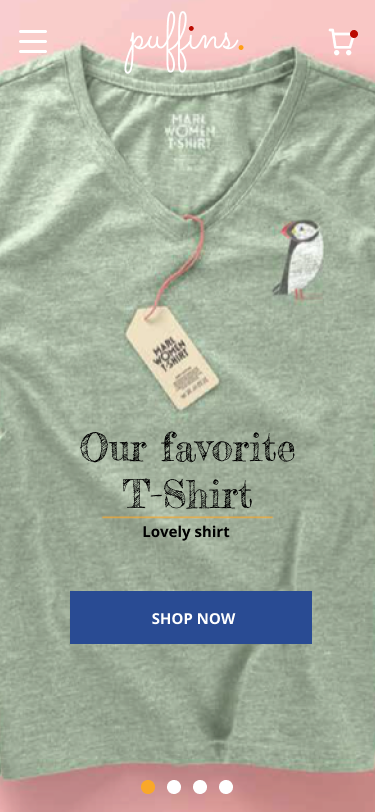

Mobile:

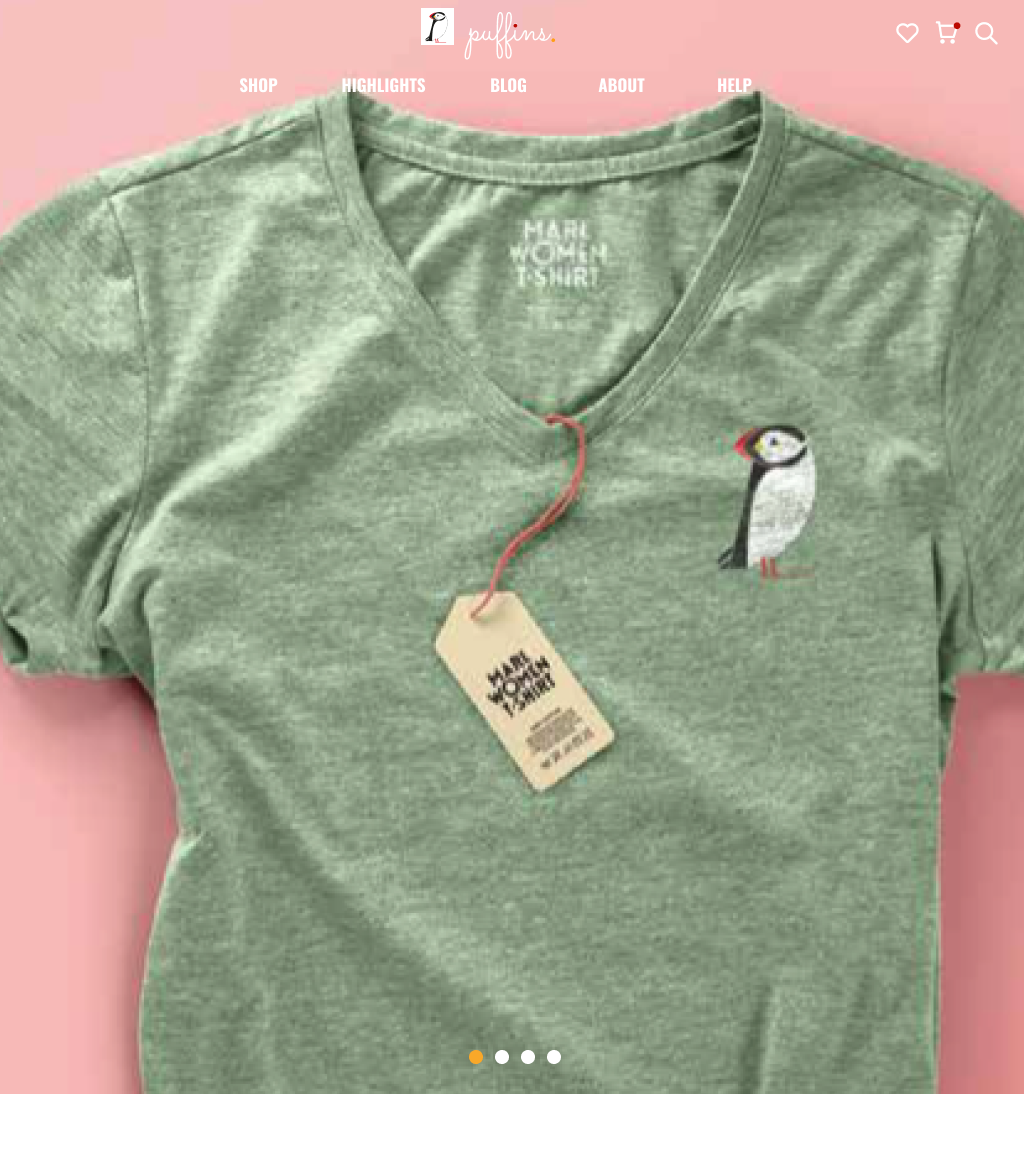

Tablet/Medium-width screen:

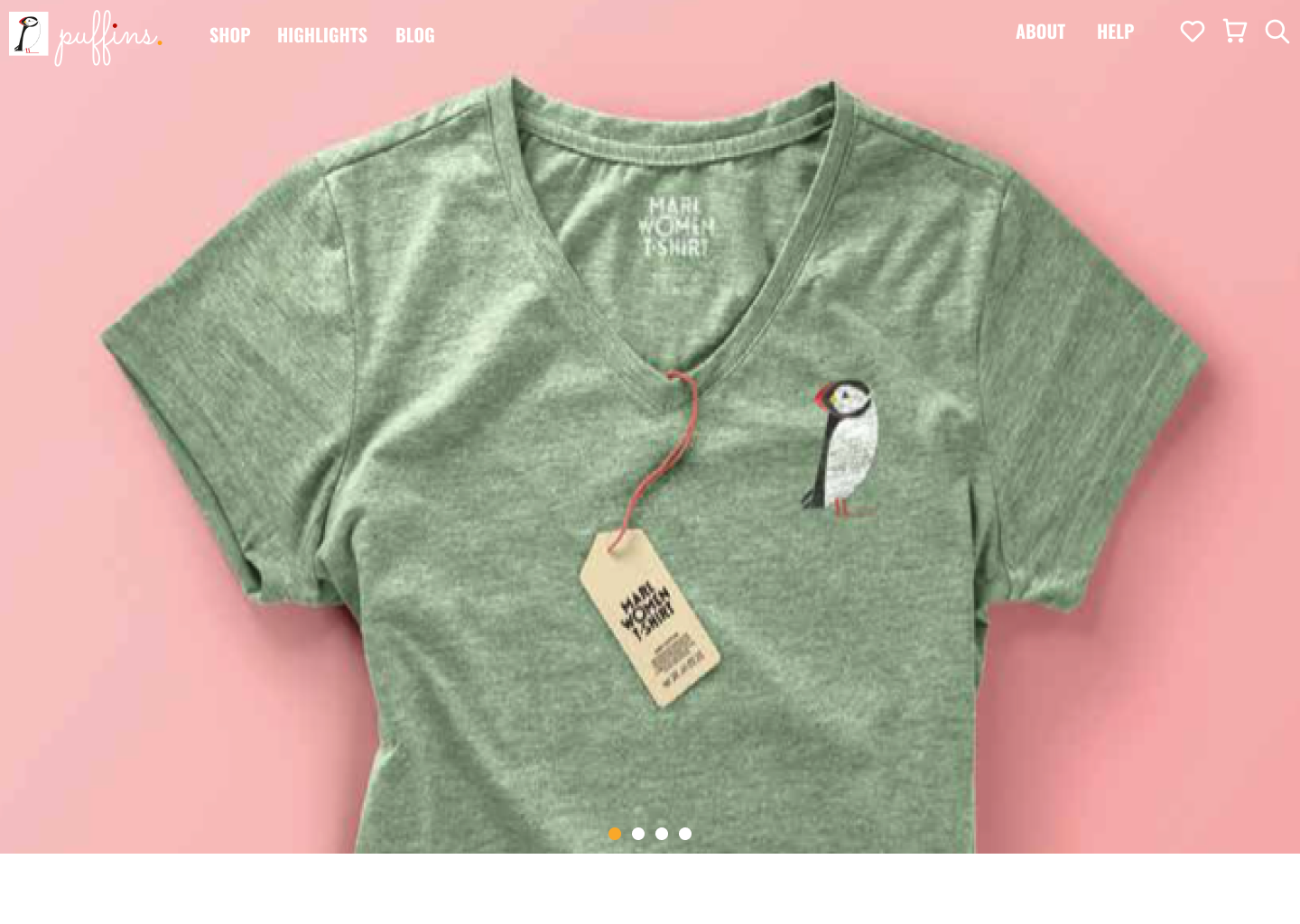

Desktop - large screen:

Final Layout

Information Architecture

Application Framework

The project brief required to base the project on the Django application framework - "The web framework for perfectionists with deadlines". Django is an open source python web framework that takes away the burdens of regular web development and allows developers to quickly build a secure, scalable and state-of-the art app.

Database Selection

During development the built-in SQLite3 database from django is used. However, for the deployment to Heroku a switch to postgressql was undertaken. Django’s authentication system in combination with django-allauth is used to manage users and permissions. The structure of the products and checkout app are based on the Boutique Ado project from Code Institute and customized to the specific project needs.

Data Models

Productline

Name	Type	Example Data
name	CharField(max_length=50)	tshirt
display_text	CharField(max_length=254)	T-Shirt

Products

Name	Type	Example Data
category	ForeignKey( 'Category')	1
productline	ForeignKey( 'ProductLine')	1
name	CharField( max_length = 254 )	passionate
display_text	CharField( max_length = 254 )	Passionate Puffin
price	DecimalField(max_digits=6, decimal_places=2, validators=[MinValueValidator(0.01)], blank=True)	49.95
discount_price	DecimalField(max_digits=6, decimal_places=2, validators=[MinValueValidator(0.01)], blank=True)	39,96
is_on_sale	BooleanField(default=False)	True
avail_for_pre_order	BooleanField( default = False )	False
date_of_dispatch	CharField( max_length = 254 , blank = True , null = True )	null
discontinued	BooleanField( default = False )	false
image	ImageField( null = True , blank = True )	passionatepuffin.png
image_url	URLField( max_length = 1024 , null = True , blank = True )	https://thepuffins.s3.amazonaws.com/media/passionatepuffin.png
description	TextField( null = True , blank = True )	Made with love and passion: the passionate puffin with its super soft, lightweight cotton fabric and neps in contrast colour has the perfect fit. Wear it on its own or as a base layer under a cardigan. Made the Puffins way, from organic linen from the EU for a great sustainable tee. T-shirts made from linen make you stay cool in the summer . They are more durable and also feel lighter.
is_featured	BooleanField( default = False , null = True , blank = True )	True
color	CharField( max_length = 254 , null = True )	grey
material_1	CharField( max_length = 254 , null = True , blank = True )	linen
material_2	CharField( max_length = 254 , null = True , blank = True )	""

Productsize

Name	Type	Example
SIZE_CHOICES		[('NO', 'None'), ('XS', 'Extra Small'), ('S', 'Small'), ('M', 'Medium'), ('L', 'Large'), ('XL', 'Extra Large'),]
shirt_size	CharField( max_length = 2 , choices =SIZE_CHOICES)	XS

Productvariant

Name	Type	Example
product	ForeignKey('Product', on_delete=models.CASCADE)	1
size	ForeignKey('ProductSize', on_delete=models.CASCADE)	XS
quantity	IntegerField( validators =[MinValueValidator( 0.0 )])	9

Order

Name	Type
order_number	CharField( max_length = 32 , null = False , editable = False )
user_profile	ForeignKey(UserAccount, on_delete =models.SET_NULL,null = True , blank = True ,related_name = 'orders' )
order_status	CharField( max_length = 1 , choices =STATUS_OPTIONS, default = '0' )
first_name	CharField( max_length = 50 , null = False , blank = False )
last_name	CharField( max_length = 50 , null = False , blank = False )
email	EmailField( max_length = 254 , null = False , blank = False )
phone_number	CharField( max_length = 20 , blank = True )
country	CountryField( blank_label = 'Country' , null = False , blank = False )
zipcode	CharField( max_length = 20 , null = True , blank = False )
town_or_city	CharField( max_length = 40 , null = False , blank = False )
street_address1	CharField( max_length = 80 , null = False , blank = False )
street_address2	CharField( max_length = 80 , blank = True )
total_order	DecimalField( max_digits = 10 , decimal_places = 2 , null = False , default = 0 )
total_tax	DecimalField( max_digits = 10 , decimal_places = 2 , null = False , default = 0 )
tax_rate	DecimalField( max_digits = 6 , decimal_places = 2 , null = False , default = 0 )
delivery_cost	DecimalField( max_digits = 10 , decimal_places = 2 , null = False , default = 0 )
grand_total	DecimalField( max_digits = 10 , decimal_places = 2 , null = False , default = 0 )
date_order_placed	DateTimeField( auto_now_add = True )
original_cart	TextField( null = False , blank = False , default = '' )
stripe_pid	CharField( max_length = 254 , null = False , blank = False , default = '' )

OrderLineItem

Name	Type
order	ForeignKey(Order, null = False , blank = False , on_delete =models.CASCADE, related_name = "lineitems" )
productvariant	ForeignKey(ProductVariant, null = False , blank = False , on_delete =models.CASCADE)
quantity	IntegerField( blank = False , default = 0 )
lineitem_total	DecimalField( max_digits = 6 , decimal_places = 2 , null = False , default = 0 , editable = False )

Useraccount

Name	Type
user	OneToOneField(User, on_delete =models.CASCADE)
default_phone_number	CharField( max_length = 20 , null = True , blank = True )
default_street_address1	CharField( max_length = 80 , null = True , blank = True )
default_street_address2	CharField( max_length = 80 , null = True , blank = True )
default_zipcode	CharField( max_length = 20 , null = True , blank = True )
default_town_or_city	CharField( max_length = 40 , null = True , blank = True )
default_country	CountryField( blank_label = 'Country' , null = True , blank = True )

Wishlist

Name	Type
user_profile	OneToOneField(UserAccount, on_delete =models.CASCADE, null = False , blank = False)
wished_products	ManyToManyField(Product, related_name = 'userwishlists' )

FAQs

Name	Type
CATEGORY_CHOICES	[( '1' , 'General' ), ( '2' , 'Return' ), ( '3' , 'Pre Order' ), ( '4' , 'Delivery' ), ( '5' , 'Payment' ),]
category	CharField( max_length = 1 , choices =CATEGORY_CHOICES)
name	CharField(max_length = 120 , null = True, blank = False )
title	CharField(max_length = 120 , null = True , blank = False )
answer	TextField()
created_at	DateTimeField(auto_now_add = True ,null = False )
updated_at	DateTimeField(auto_now = True , null = False)

Blog

Name	Type
author	ForeignKey(UserAccount, on_delete =models.CASCADE, null = False , blank = True )
title	CharField(max_length=120, null=True, blank=False)
subtitle	CharField(max_length=180, null=True, blank=False)
body	TextField()
slug	SlugField(unique=True, max_length=250, default=None)
created_at	DateTimeField(auto_now_add=True, null=False)
updated_at	DateTimeField(auto_now=True, null=False)
title_image	ImageField(null=True, blank=True)
title_image_url_1	URLField(max_length=1024, null=True, blank=True)
content_image_1	ImageField(null=True, blank=True)
content_image_url_1	URLField(max_length=1024, null=True, blank=True)
content_image_2	ImageField(null=True, blank=True)
content_image_url_2	URLField(max_length=1024, null=True, blank=True)

Features

The following features were thought of.

:white_check_mark =Features that made it into the deployed Project
🧰 = Features that are interessting for Future Development

Navbar

Logged in and non-logged in users see different options ✅
Searchbar opens below nav when search icon is clicked ✅
Fixed to top and transparent ✅
Changes background and font color on scroll ✅
Changes background and font color if collapsed on small screens ✅

Footer

Logo is displayed ✅
Quicklinks to products are available ✅
Contact details are accessabile ✅
Link to About page is present ✅
Sign Up for Newsletter subscription 🧰

Landing Page

Caroussel with image also behind nav ✅
Random featured products are chosen to be displayed in caroussel ✅
Images for featured icons are different from the product picture to be even more appealing 🧰

About Page

Vision is diplayed ✅
Short introduction to company is provided ✅
Images of company founders and founder portrait 🧰

Help / Contact Page

FAQ are diplayed ✅
FAQs are categorized ✅
Contact form available for User ✅
Chat Option to provide direct support 🧰

Shop

Products can be browsed by Category (e.g. Kids) ✅
Products can be browsed by Category & Productline (e.g. Kids -> T-Shirt) ✅
Products can be sorted by...
...Featured Products ✅
...Price ✅ ...Color ✅
...Name ✅
Products have different labels based on
Normal Product ✅
Sale Product ✅
Pre-Order Productn:white_check_mark:
Product Details have a Select Option if different sizes are available ✅
Product Details have only a "Add to Cart" button if unisize item ✅
Partnerlook Section sorts products by name to display matching items side by side ✅
Product can be shared on social media 🧰

If registered:

Product Details allow user to add/remove product to/from wishlist ✅

Highlights

Products a prominently display ✅
only featured items are rendered ✅

Cart

Cart is present in Side Drawer Container ✅
Newest Item is always presented on top ✅
Total inkl. Tax & Shipping ✅
Checkout straight from Cart Side Drawer ✅
Add to cart renders updated cart via Ajax-Request ✅
Increase/Decrease Quantity request via Ajax within Side Drawer Cart 🧰
Remove Items from Cart ia Ajax-Request within Side Drawer Cart 🧰
Reserve requested item & quantity to for 10 Min. to avoid checkouts with unavailable products 🧰

If registered:

attach cart to userprofile instead of saving to session 🧰

Checkout

Order summary ✅
Form to enter shipping address ✅
Payment via Credit Card ✅
Users gets order confirmation by mail ✅
general discount codes can be used 🧰
personalized discount codes can be used 🧰
Users receives order updates when order status changes 🧰
Apple Pay integration 🧰

If registered:

Form is prefilled with available user data ✅
Form data can be saved to userprofile ✅

Sign Up & login:

Sign up can be undertaken ✅
Sign up also collected first and last name ✅
login can be undertaken ✅
Password reset ✅
Delete account 🧰

Sign in with apple or google account 🧰

Registered Users: Useraccount

User can look up saved address information ✅
User can update address information ✅
User can see past orderes ✅
User can enter detail view of past orders ✅

Registered Users: Wishlist

User can add/remove items to personal wishlist from product details ✅
User can view stored wishlist items ✅
Users can add items to wishlist from product overview 🧰
users can add items and size to wishlist 🧰
users can immediatley transform wishlist into order 🧰

Store Management:

... can create/read/update/delete products in Django-Admin-View ✅
... can create/read/update/delete blogposts in Django-Admin-View ✅
... can create/read/update/delete FAQs in Django-Admin-View ✅
... can create/read/update/delete Users in Django-Admin-View ✅
... Order Management system 🧰

Newsletter

User can sign up for newsletter 🧰
User get a coupon code for newsletter subscription 🧰
User can manage their subscription 🧰

Technologies Applied

The following technologie were used during the development of the project.

Databases

Languages

Frameworks

Libraries, Tools

Hosting

Testing

A detailed description about the testing process and results can be found in the TESTING.md. To give a brief overlook of the feature testing this table gives a codensed overview of the tested, features, devices, browsers and results:

Test Case	iPhone Safari	iPhone Chrome	iPhone Edge	iPad Safari	iPad Edge	iPad Brave	Mac Edge	Mac Safari	Mac Chrome
Test Navbar	✅	✅	✅	✅	✅	✅	✅	✅	✅
Footer	✅	✅	✅	✅	✅	✅	✅	✅	✅
Landing Page	✅	✅	✅	✅	✅	✅	✅	✅	✅
About Page	✅	✅	✅	✅	✅	✅	✅	✅	✅
Help / Contact Page	✅	✅	✅	✅	✅	✅	✅	✅	✅
Shop	✅	✅	✅	✅	✅	✅	✅	✅	✅
Highlights	✅	✅	✅	✅	✅	✅	✅	✅	✅
Cart	✅	✅	✅	✅	✅	✅	✅	✅	✅
Checkout	✅	✅	✅	✅	✅	✅	✅	✅	✅
Sign Up	✅	✅	✅	✅	✅	✅	✅	✅	✅
Registered Users: Useraccount	✅	✅	✅	✅	✅	✅	✅	✅	✅
Registered Users: Wishlist	✅	✅	✅	✅	✅	✅	✅	✅	✅

Deployment

This site is deployed to heroku and the versioning was done with git and the Repository is hosted on Github.

Prerequisites to work with this Site

This project can be used for development with the following tools:

IDE of Choie (i prefer Gitpod)
Python3, PIP & Git should be installed

Furthermore accounts with the following services are used in this project:

Local Deployment: Step-by-Step Instructions

Official Github Documentation on cloning a repositiory: Github - Cloning Repos

Navigate to Mainpage of the repository
Click on "Code" button
Choose "Clone with HTTPs" & copy URL
Open Terminal
Change the current working directory to prefered location
Type git clone and past copied URL git clone https://github.com/p0wen/puffins.git
Press Enter to create local Clone - Make sure your environment supports python3 -
Type pip3 install -r requirements.txt into Terminal
Setup the environment variables. This process is differnet depending on the used IDE. Gitpod supports global Environments for the development process. Therefore they were stored in the settings. The following variables are needed:
```
DEVELOPMENT=True
STRIPE_PUBLIC_KEY = <YOUR STRIPE_PUBLIC_KEY>
STRIPE_SECRET_KEY = <YOUR STRIPE_SECRET_KEY>
STRIPE_WH_SECRET = <YOUR STRIPE_WH_SECRET>
```
Migrate the models and create the database by typing the following commands into the terminal:
1. python3 manage.py makemigrations
2. python3 manage.py migrate
Import the provided fixtures in the following order (copy&paste if you like):
1. python3 manage.py loaddata categories
2. python3 manage.py loaddata productline
3. python3 manage.py loaddata products
4. python3 manage.py loaddata proudctsize
5. python3 manage.py loaddata productvariants
6. python3 manage.py loaddata blog
7. python3 manage.py loaddata faq
Create a superuser for accessing the django admin view with the following command: python3 manage.py createsuperuser You will be asked for an email address, username and password.
You should be all set and when using the command python3 manage.py runserver the project should run.
You can access the django admin view by adding ~/admin to the end of your (local) URL.

Deployment to Heroku: Step-by-Step Instructions

This project is deployed to Heroku. For the deployment the following steps were/are necessary:

Create/Log in to your Heroku account and create a new App.
Install Heroku Add-on Heroku Postgres from the Resources tab. The free Hobby Dev version is fine. Now click the Provision button to add it to your project.
Create requirements.txt from your project with the help of pip3 freeze --local > requirements.txt (already provided within the repository)
Create a Procfile echo web: gunicorn puffins.wsgi:application > Procfile (already provided within the repository)
Commit changes to Git git add . followed by git commit -m "Deploy: Updated Procfile" (already provided within the repository)

Set the environment variables in Heroku Settings > Reveal Config Variables The following Variables must be set:

USE_AWS = TRUE
AWS_ACCESS_KEY_ID = <YOUR AWS_ACCESS_KEY_ID>
AWS_SECRET_ACCESS_KEY = <YOUR AWS_SECRET_ACCESS_KEY>
DATABASE_URL = <YOUR DATABASE_URL> (Set by Heroku Postgres)
EMAIL_HOST_USER = <YOUR EMAIL_HOST_USER>
EMAIL_HOST_PASSWORD = <YOUR EMAIL_HOST_PASSWORD>
DEFAULT_FROM_EMAIL = <YOUR DEFAULT_FROM_EMAIL>
STRIPE_PUBLIC_KEY = <YOUR STRIPE_PUBLIC_KEY>
STRIPE_SECRET_KEY = <YOUR STRIPE_SECRET_KEY>
STRIPE_WH_SECRET = <YOUR STRIPE_WH_SECRET>

Extract the DATABASE_URL Value from the Heroku Settings and set it up in your IDE or local .env file. Make sure to keep this DATABASE_URL a secret and definitly don't commit it to Github.
To test if the Postgres database is connected to your IDE you can make use of the command python3 manage.py showmigrations. This should show undone migrations for all models.
Now migrate the models and create the postgres database on heroku by typing the following commands into the terminal:
1. python3 manage.py makemigrations
2. python3 manage.py migrate
To setup the data in the database import the provided fixtures in the following order (copy&paste if you like):
1. python3 manage.py loaddata categories
2. python3 manage.py loaddata productline
3. python3 manage.py loaddata products
4. python3 manage.py loaddata proudctsize
5. python3 manage.py loaddata productvariants
6. python3 manage.py loaddata blog
7. python3 manage.py loaddata faq
Create a superuser for the Postgres database for accessing the django admin view with the following command: python3 manage.py createsuperuser You will be asked for an email address, username and password.
Log in to heroku from your terminal heroku login
Add exisitng repository to Heroku heroku git:remote -a <your repository>
Push changes to Heroku git push heroku master
Now go to your S3 account. There bucket should already contain a folder called static. To upload the product images create a new folder called media. And add the files to this folder. Make sure to grant public read access to these objects.
Finally, visit the app url from heroku and check out your great site!

References, Credits & Acknowledgment

Credits

Logocreated by Polardots Studio

Content & Products

Written by me - inspired by TwoThirds
All Products have been created by myself with Figma
Tutorial on how to create Tshirts with figma You Tube - Figma T-Shirt Tutorial

Media

Category Images:

Acknowledgements

Special Thanks to...

... Polardots Studio
... my Code-Institute Mentor
... the Tutor-Crew from Code Institute
... PaulF_alumni for his in-depth review and feedback on the finished project

References

Project was developed by following the Code Institute Boutique Ado-Poject lessons and was extended and modified to personal needs
Read up on making drop down full width Stack Overflow - Fullwidth Dropdown Navbar
Horzizontal line readup Stack Overflow - Horzizontal Line
Tutorial on how to animate scrollbar Youtube - Animat Scrollbar
How to custome style navbar Medium - Bootstrap Custom Navbar
Starting point for carousel Start Bootstrap - Full Slider
Inspiration for a mega menu W3 Schools - Mega Menu
Inspiration for product names Magoosh - Positive adjectives
Bases for toggling colappsed navbar background: Stack Overflow - Navbar Toggle
How to go back to previous page Stack Overflow - JS Back Button
How to style crispy forms Simple is Better Than Complex - Crispy Forms
How to work with ajax and django:
Simple is Better Than Complex - Ajax & Django
Real Python - Django & Ajax form submission
How to avoid duplicates in database of productvariant (product & size) Stack Overflow - Avoid Duplicates
How to handle names Stack Overflow - Split First / Last Name
How to control dates in template: Our Code World - How to format date time in view and Template
Work with many to many fields Rev Sys - ManyToManyField
How to build your own blog Medium - How to build you own Blog
Database tables in markdown created with: Tables Generator
How to create unique slug: SimpleIT Rocks - Automatically slug/
Assign MEDIA URL for JS Files: Stack Overflow - Django Static Path

Fair use disclaimer

This is for educational use

Name		Name	Last commit message	Last commit date
Latest commit History 404 Commits
.theia		.theia
about		about
blog		blog
cart		cart
checkout		checkout
contact		contact
highlights		highlights
home		home
media		media
products		products
puffins		puffins
static		static
templates		templates
useraccount		useraccount
wishlists		wishlists
.coverage		.coverage
.gitignore		.gitignore
.gitpod.dockerfile		.gitpod.dockerfile
.gitpod.yml		.gitpod.yml
.travis.yml		.travis.yml
Procfile		Procfile
README.md		README.md
TESTING.md		TESTING.md
custom_storages.py		custom_storages.py
manage.py		manage.py
requirements.txt		requirements.txt

Name	Type	Example Data
name	CharField(max_length=254)	grown_ups
display_text	CharField(max_length=254)	Grown Ups
image	ImageField(null=True, blank=True)	grownup_puffin.png
image_url	URLField(max_length=1024, null=True, blank=True)	https://thepuffins.s3.amazonaws.com/media/grownup_puffin.png

p0wen/puffins

Folders and files

Latest commit

History

Repository files navigation

Puffins

Table of Content

UXD Considerations

Purpose and Aim of the Project

Design process

Target group

Epics & User Stories

EPIC: Browse Site

Epic: Browse Products

Epic: Manage Cart & Make Purchase

Epic: Registration & Useraccount

Epic: Manage Wishlist

Epic: Store Management

Layout, Styling & Wireframes

Logo

Color Scheme

Components

Wireframes

Mobile:

Tablet/Medium-width screen:

Desktop - large screen:

Final Layout

Information Architecture

Application Framework

Database Selection

Data Models

Categories

Productline

Products

Productsize

Productvariant

Order

OrderLineItem

Useraccount

Wishlist

FAQs

Blog

Features

Navbar

Footer

Landing Page

About Page

Help / Contact Page

Shop

Highlights

Cart

Checkout

Sign Up & login:

Registered Users: Useraccount

Registered Users: Wishlist

Store Management:

Newsletter

Technologies Applied

Databases

Languages

Frameworks

Libraries, Tools

Hosting

Testing

Deployment

Prerequisites to work with this Site

Local Deployment: Step-by-Step Instructions

Deployment to Heroku: Step-by-Step Instructions

References, Credits & Acknowledgment

Credits

Content & Products

Media

Acknowledgements

References

Fair use disclaimer

About

Topics

Resources

Stars

Watchers

Packages
